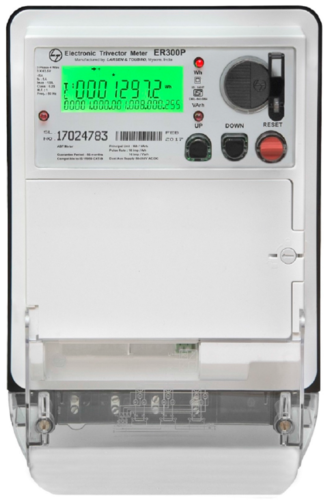

L And T make ABT Meter

L And T make ABT Meter

Name: L And T make ABT Meter
Brand: DVG ENGINEERS PVT. LTD.
Price: 65000.0 INR
Availability: InStock

Price 65000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

L And T make ABT Meter Specification

Usage & Applications
Commercial, Industrial energy metering, Sub-station metering and grid interface points

Resistant Feature
Flame Retardant, UV Resistant Casing

Batteries Type
Lithium Embedded, Long-life for RTC Back-up

Product Type
ABT Meter

Material
Plastic

Measuring Voltage Range
57.7/100V to 240/415V AC Volt (v)

Operating Temperature
-10C to +55C Celsius (oC)

Frequency (MHz)
50 Hertz (HZ)

Insulation Box
Available

Protection System
Integrated Overvoltage and Undervoltage Protection

Size
Standard

Color
Transparent

Dimension (L*W*H)
300 x 270 x 135 mm Millimeter (mm)

Weight
Approx. 3.5 kg Kilograms (kg)

Warranty
Yes

L And T make ABT Meter Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
1-7 Days

Main Domestic Market
All India

About L And T make ABT Meter

0.2 class ABT meter with SAMAST guidelines

The meter has Optical Port, RS485 port, RS 232 port & Ethernet port .

As per latest MSETCL spects

Technical Specifications

Phase	Three
Voltage	EHV & HV
Version Of Communication	Optical Port,RS 485,RS232,Ethernet
Interface Module Slot	yes
Model Name/Number	ER300P Series
Usage/Application	Interface Energy Meters
Type	Digital
Accuracy Class	0.2s
Weight	3kg
Overall Length	1feet
Brand	L&T
Port	4 port
Current	-/1A
Class Of Accuracy	0.2s class
Certification	IS-14697,IS15959

Reliable Metering for Commercial and Industrial Needs

The L And T ABT Meter is engineered for precision measurement and long-term durability, catering to the stringent requirements of energy metering in commercial, industrial, and grid settings. Its compliance with IS 15959/IS 13779 and CEA regulations ensures reliable operation and data integrity.

Advanced Features and Communication Options

Equipped with multiple communication ports (RS-232, RS-485, and optical), the meter supports DLMS/COSEM protocols, making it compatible with various energy management systems. Its backlit LCD display, configurable pulse output, and extended data storage enhance usability for energy audits and monitoring.

FAQs of L And T make ABT Meter:

Q: How does the ABT Meter ensure accurate energy measurements?

A: The ABT Meter achieves high accuracy through advanced measurement technology, delivering Class 0.2s/0.5s compliance as per IEC 62053-22. It continuously monitors three-phase, four-wire or three-phase, three-wire supply systems within the voltage range of 57.7/100V to 240/415V AC.

Q: What benefits does the backlit LCD display offer in daily usage?

A: The backlit LCD display delivers clear readings under various lighting conditions, making it easier to monitor real-time data, load surveys, and event logs. It enhances user convenience during installation, maintenance, and routine checks.

Q: When should the stored data from the ABT Meter be retrieved?

A: Stored data, which includes up to 100 days of load survey, billing, and event records, should be retrieved during periodic audits, troubleshooting, or whenever regulatory or operational reviews are necessary to assess energy consumption and system events.

Q: Where can the ABT Meter be installed?

A: This meter supports both surface and panel mounting, allowing installation in commercial buildings, industrial plants, substations, and grid interface points where accurate energy monitoring is essential.

Q: What tamper resistance features are integrated into the meter?

A: The ABT Meter incorporates multi-event tamper detection, identifying magnetic tampering, AC/DC influence, neutral disturbance, and other unauthorized manipulations. These safeguards help maintain data integrity and enhance security.

Q: How does the meter communicate with external energy management systems?

A: Communication is facilitated through RS-232/RS-485 and optical ports, supporting DLMS/COSEM protocols. This enables seamless integration with a variety of energy management and billing platforms, simplifying data acquisition and analysis.
